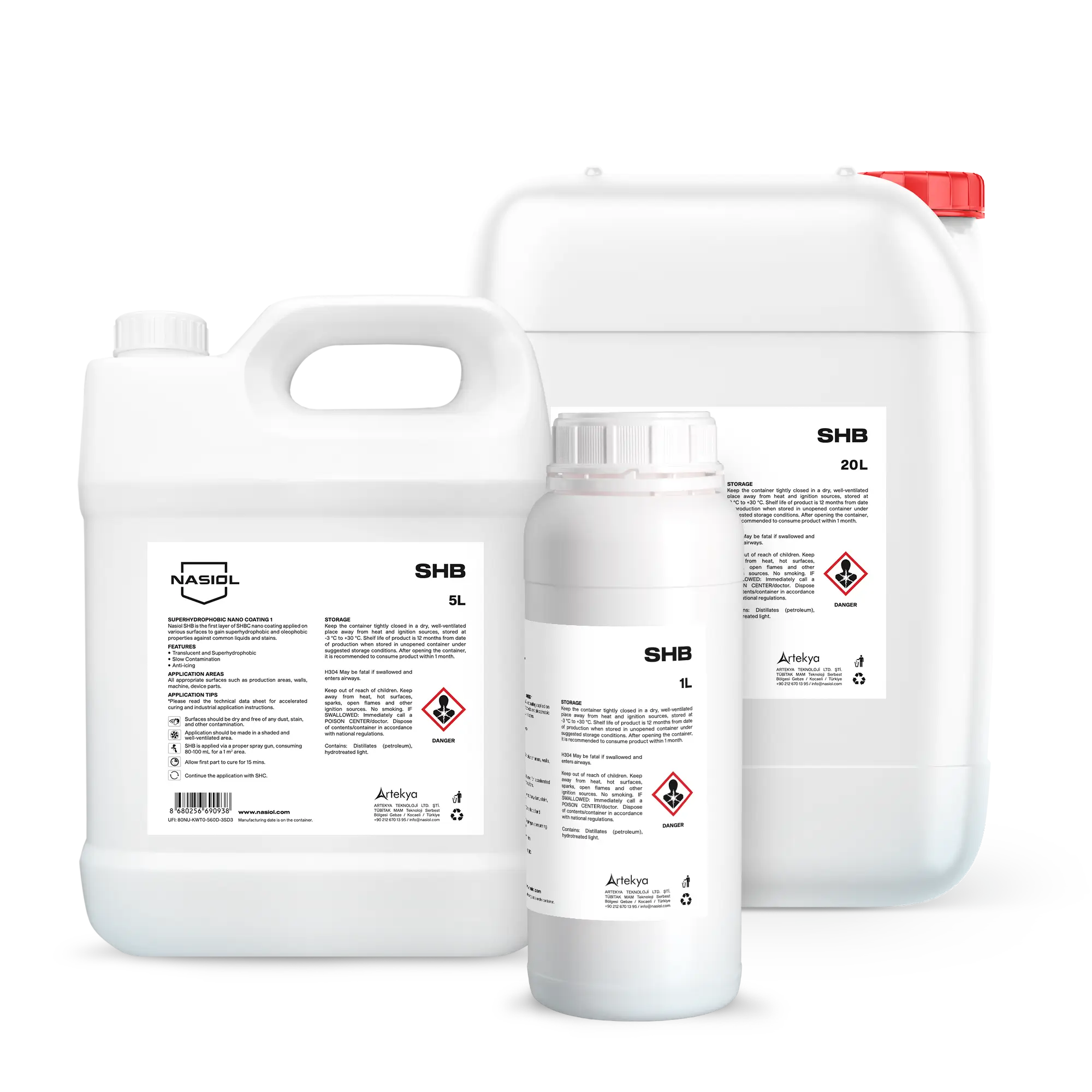

SHBC

Superhydrophobic Nano Coating for Various Surfaces

Nasiol SHBC is a superhydrophobic white, opaque and flexible coating applied as two layers (SHB + SHC) and developed to be applied on multiple kinds of surfaces.

APPLICATION OPTIONS

- Pressurized Spraying

CURING OPTIONS

- Room Temperature
- High Temperature

Surface Gains
- Opaque flexible nano coating
- Superhydrophobicity
- Oleophobicity

Benefits
- UV protection
- Slow contamination
- Easy clean
- Anti-icing

Benefit Outcomes
- Extends lifetime
- Saves money
- Reduces fungus and darkening
- Less icing

Applicable Surfaces
Production areas, walls, machine/device parts... etc


Technical Specifications
	SHBC
Appearance	Whitish Hazy Liquid
Saltwater Resistance	✓
Dry Film Thickness	8-10 µm
Consumption per Unit Area	160-200 mL/m² (SHB+SHC)
pH Value	SHB: 5.0-5.3 SHC: 4.7-5.0
Application Temperature	5°C/30°C (≤50% RH)
Temperature Durability	-30°C to +175°C
Water Contact Angle	171° @10 µL
Water Sliding Angle	1° @60 µL
Oil Contact Angle	140° @10 µL
Shelf Life	1 year when unopened 1 month after opening
Durability	Up to 2 years without abrasion
